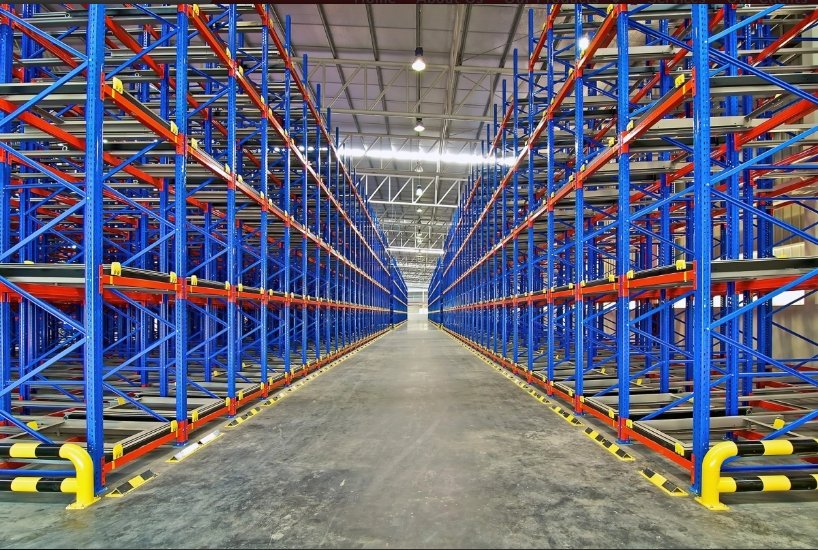

SHELVING SYSTEMS FOR NARROW PASSAGES

Specifications :

• Height = 3 or 2.5 or 2 meters, Depth or Width = 96 or 60 cm;
• Length = 2.7 – 2 – 1.32 meters;
• Loading Capacity: Each shelves will support 1000 – 1500 – 2000 kgs distributed over the entire shelf.
• The Frame distance / 8 cm X 8 cm / thickness 2 mm. Blue Color
• The bar distance / 8 cm X 4 cm / thickness 1.5 mm. white Color
• The bar distance / 10 cm X 5 cm / thickness 2 mm. white Color
• Unit shall consist of Three shelves, Bolt Free
• Total Units / 1 / Unit
• A shelf is two bar and 6 small shelves ( metal ducking )
• The small shelves distance / 33 cm X 96 cm / thickness 1.5 mm. white Color
• Dye spray powder epoxy is resistant to rust and the elements of nature and fire.
